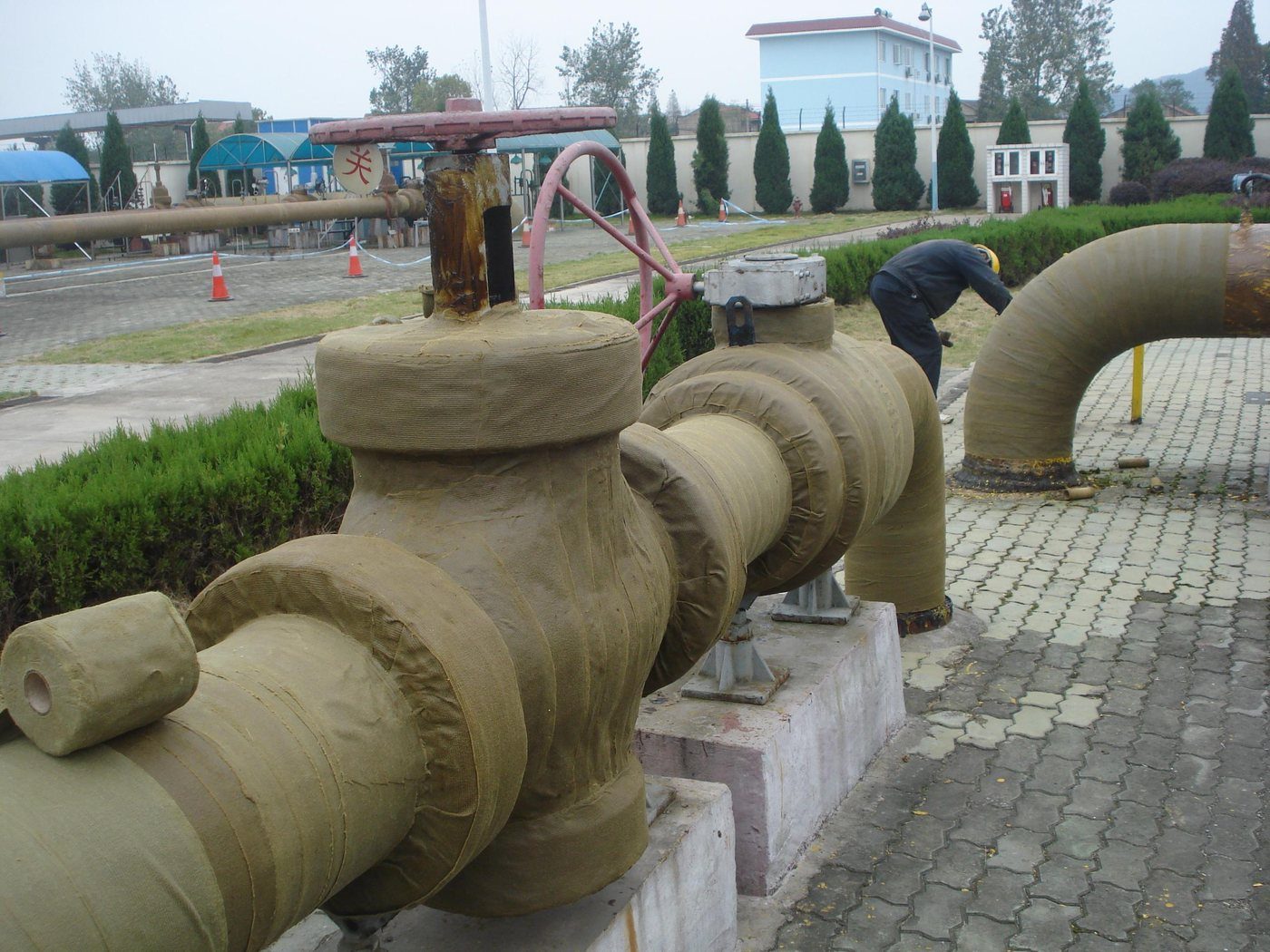

Valves and pipework protected with cold-applied petrolatum wrapping tape

Manufacturer · Nanjing, China · Established 2017

We protect the steel that cannot be shut down

Tank chimes, buried valves, jetty piles, flanges and pipe racks — the details where paint fails first and where a shutdown costs more than the repair. We manufacture the petrolatum, viscoelastic, microcrystalline wax and PE / PP wrapping systems that fix them cold, on a live asset, in a single visit.

No hot work. No curing schedule. No blasting in the applications stated on the data sheet. Four material technologies, fourteen products, one manufacturer — and every test report published in full before you ask for it.

See the 14 products Download every test report

Product systems

Products manufactured

50 000 m²

Manufacturing site area

Third-party test reports

ISO management systems

What we do

Four material technologies. One supplier. No assembly required.

Conventional coatings need blasting, dry weather, cure time and a shutdown — and they still fail first at flanges, bolt clusters, weld seams and tank chime edges. Cold-applied wrapping systems are built for exactly those details.

Most suppliers cover one or two of the four categories, so a single tank farm ends up sourced from four vendors with four qualification files. We manufacture all four in-house — petrolatum, viscoelastic, microcrystalline wax and polyolefin — which is why a project can be quoted, produced and shipped as one package.

Petrolatum, microcrystalline wax and viscoelastic compounds stay permanently plastic, displace moisture from the steel surface and conform to irregular geometry. Polyolefin tapes cover the buried pipeline scope. An outer wrap — PE, PP fibre-reinforced or aluminium foil — carries the UV, weather, soil-stress and handling loads.

About the company

Applied on live plant

No hot work and no curing schedule, so work proceeds inside permit-controlled areas and during normal operation.

Built for complex geometry

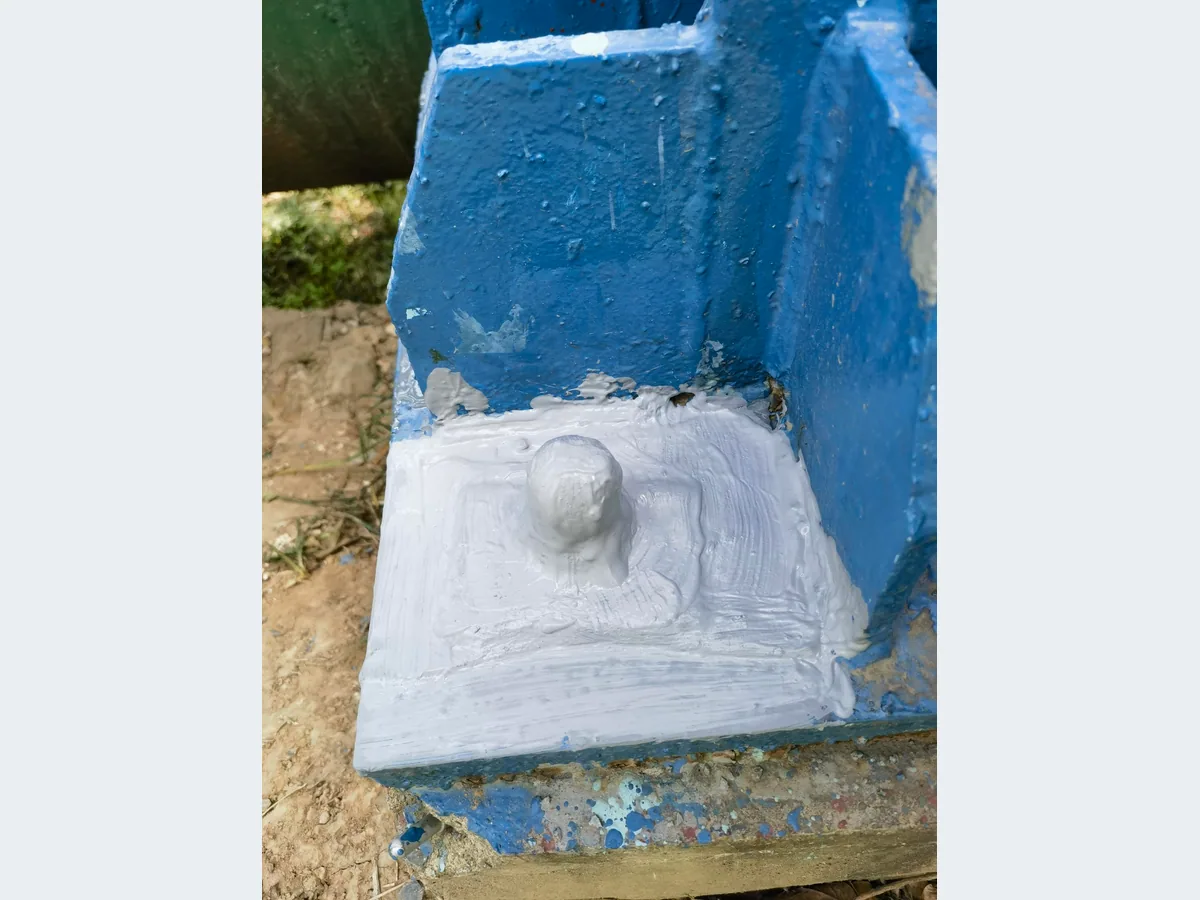

Flanges, bolt clusters, valve stems and weld caps are wrapped rather than coated — and can be cut open, inspected and re-applied at the next turnaround.

Reduced surface preparation

For the petrolatum and wax maintenance systems, St2 hand preparation is sufficient in the applications stated on the data sheet.

Documented in English

Data sheets, safety data sheets, third-party test reports and certificates — enough to register the range without a translation project first.

What we sell

Five product systems, fourteen products

Products are selected by system and application. Choose the system from the environment and the asset; choose the products from the role each one plays in the build-up.

System 01 · 7 products

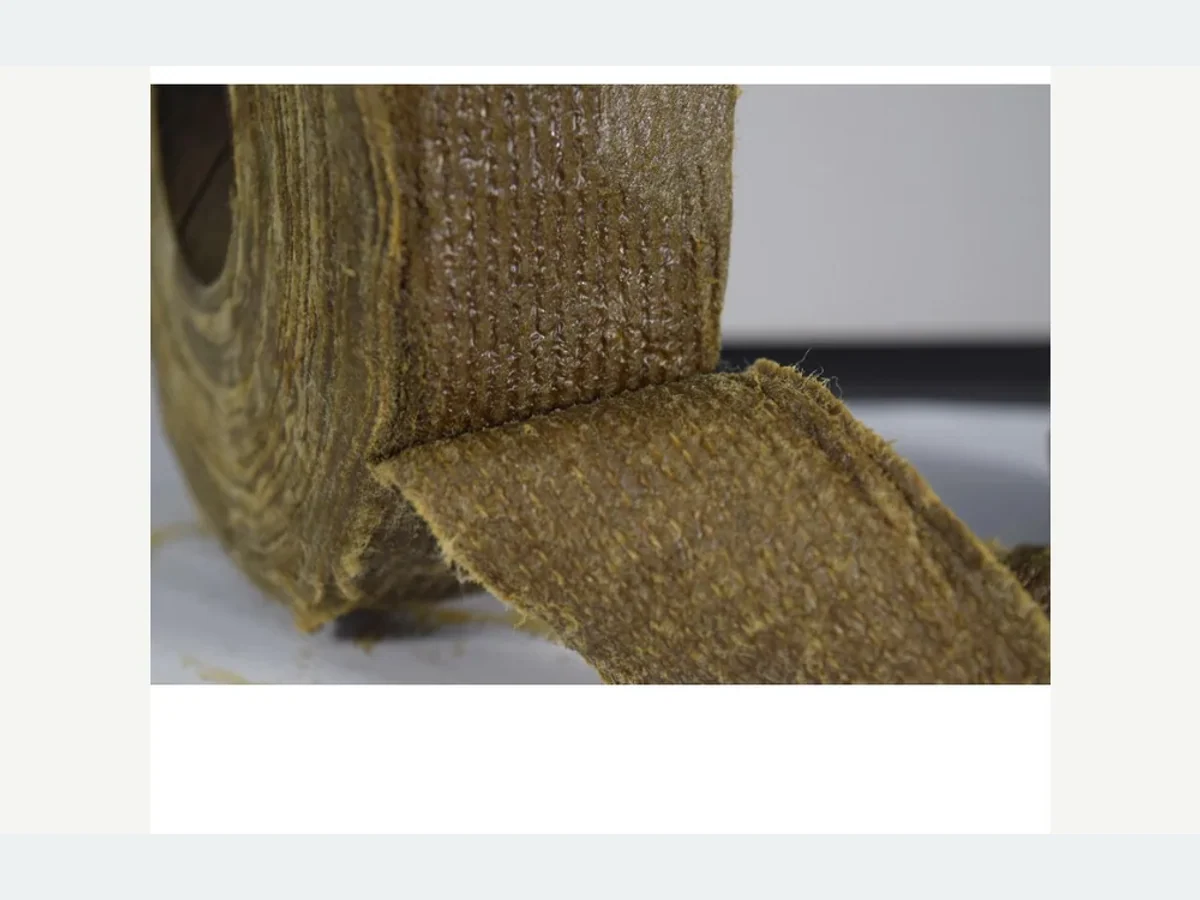

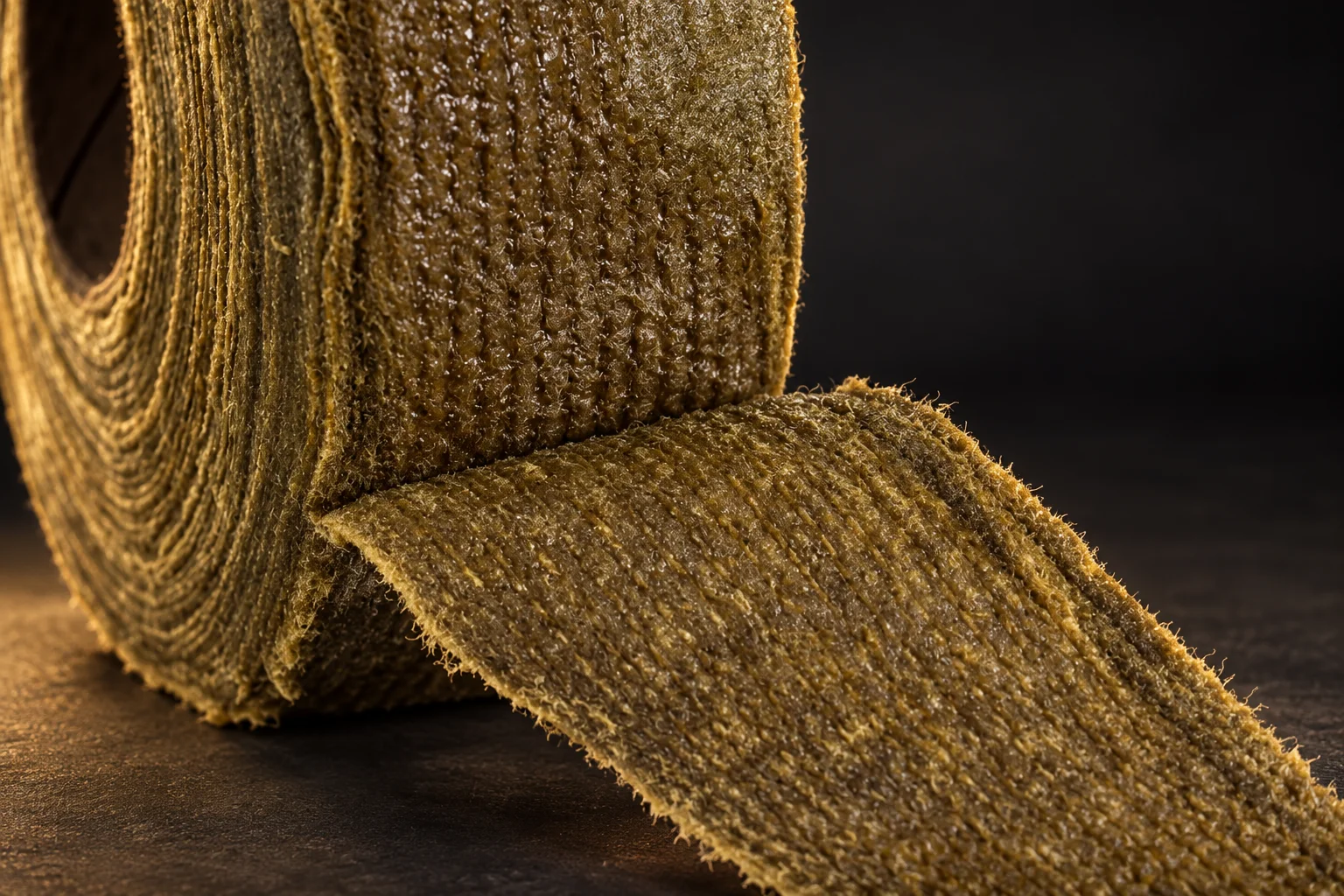

Petrolatum Corrosion Protection System

The reference cold-applied system for tank bases, valves, flanges and complex steel. Non-curing petrolatum compounds displace moisture, wet the steel and remain plastic for the life of the system. Three tape grades cover shipboard, industrial and continuously wet or submerged service.

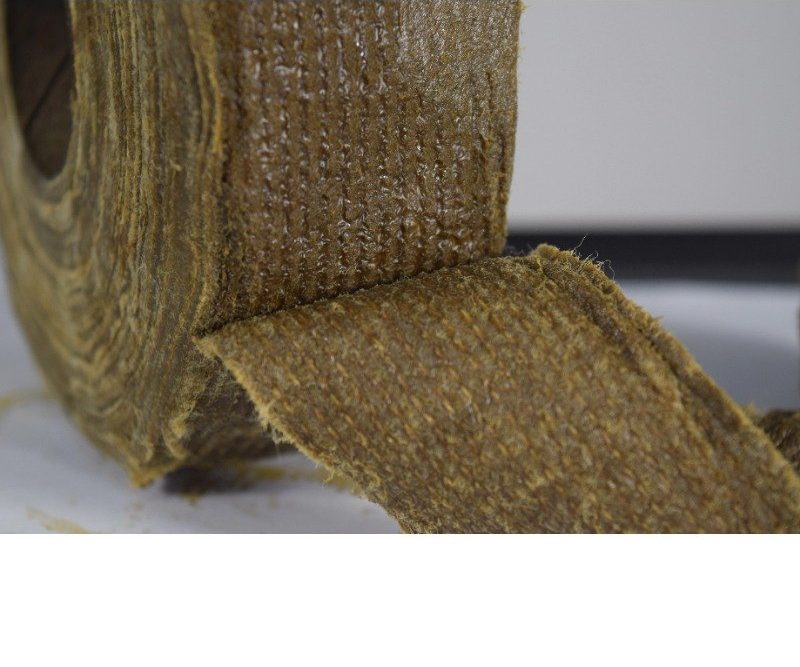

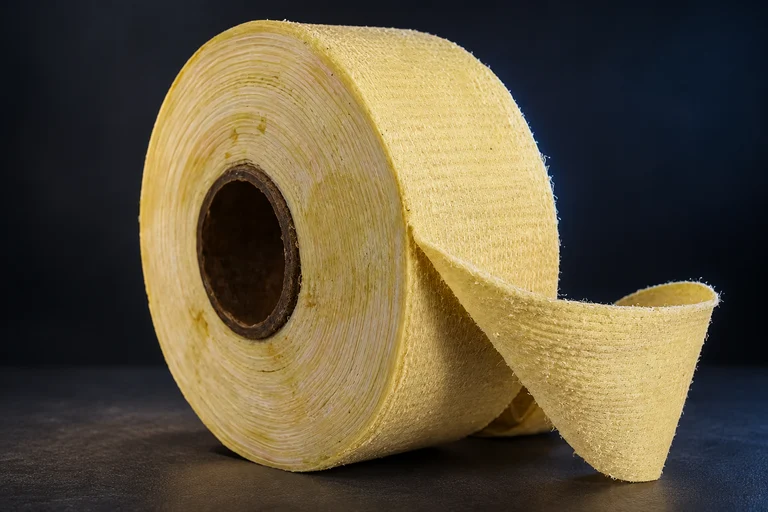

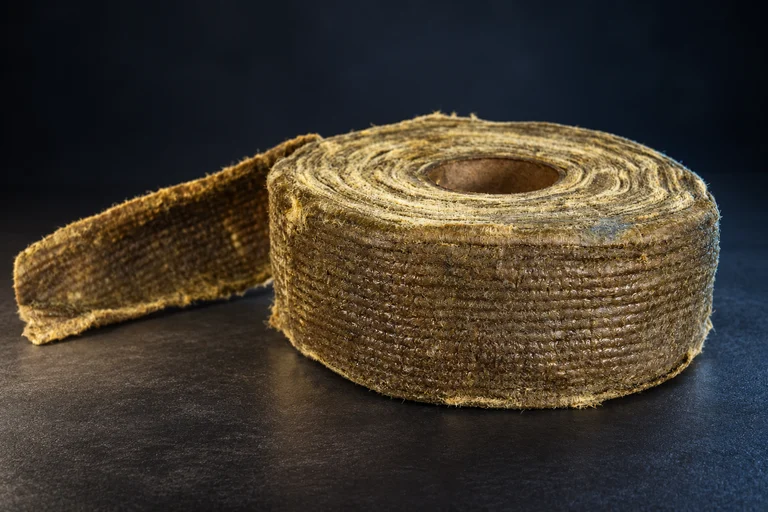

Petrolatum Tape — MarinePetrolatum Tape — Industrial Petrolatum Tape — SeawaterTape Primer High-Tack PrimerSealing MasticElastic Mastic

System 02 · 2 products

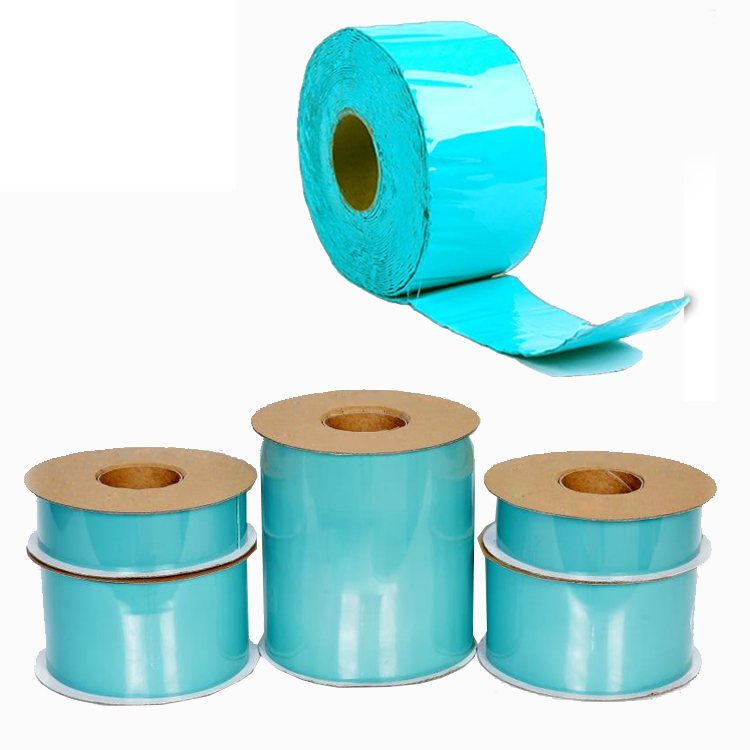

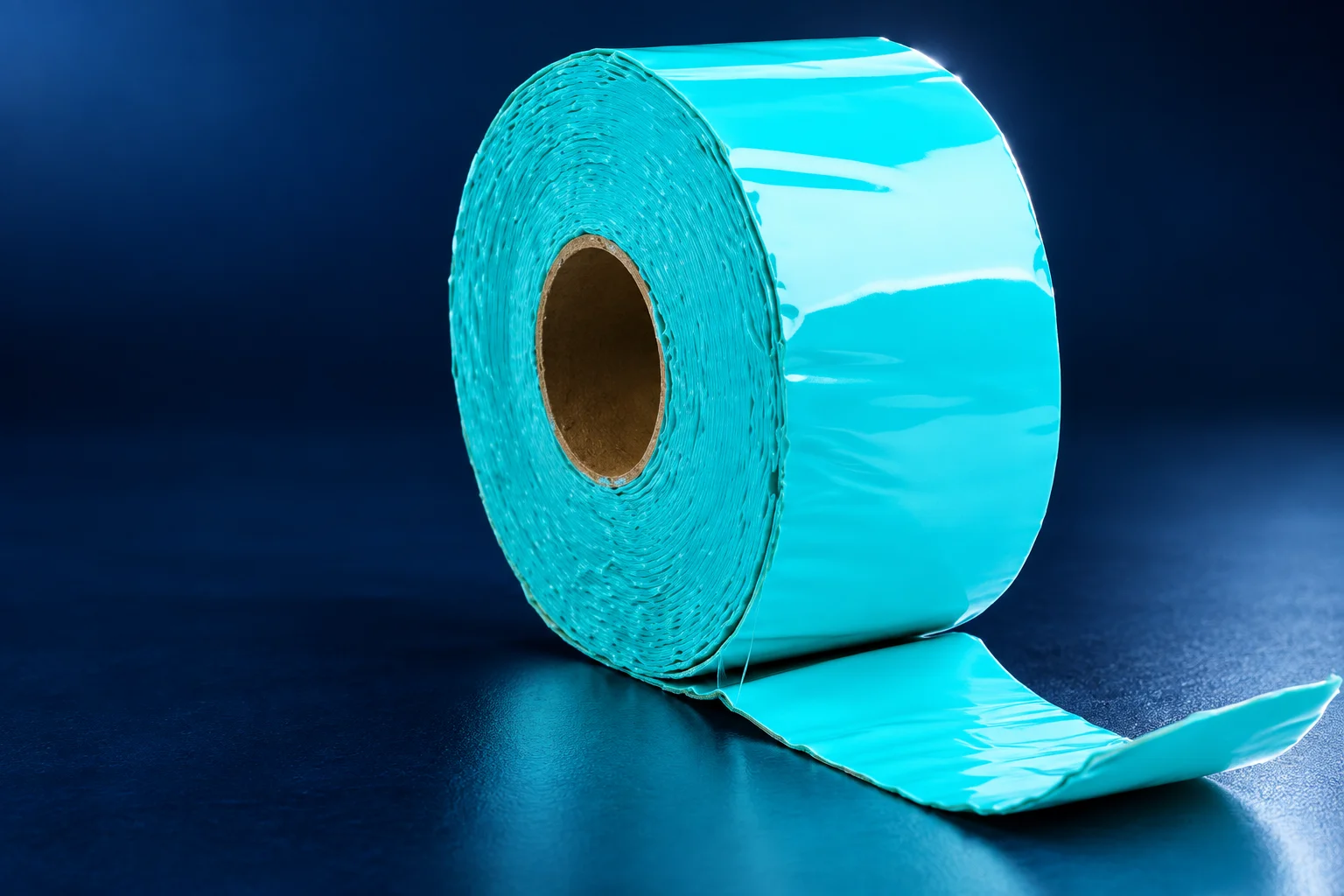

Viscoelastic Corrosion Protection System

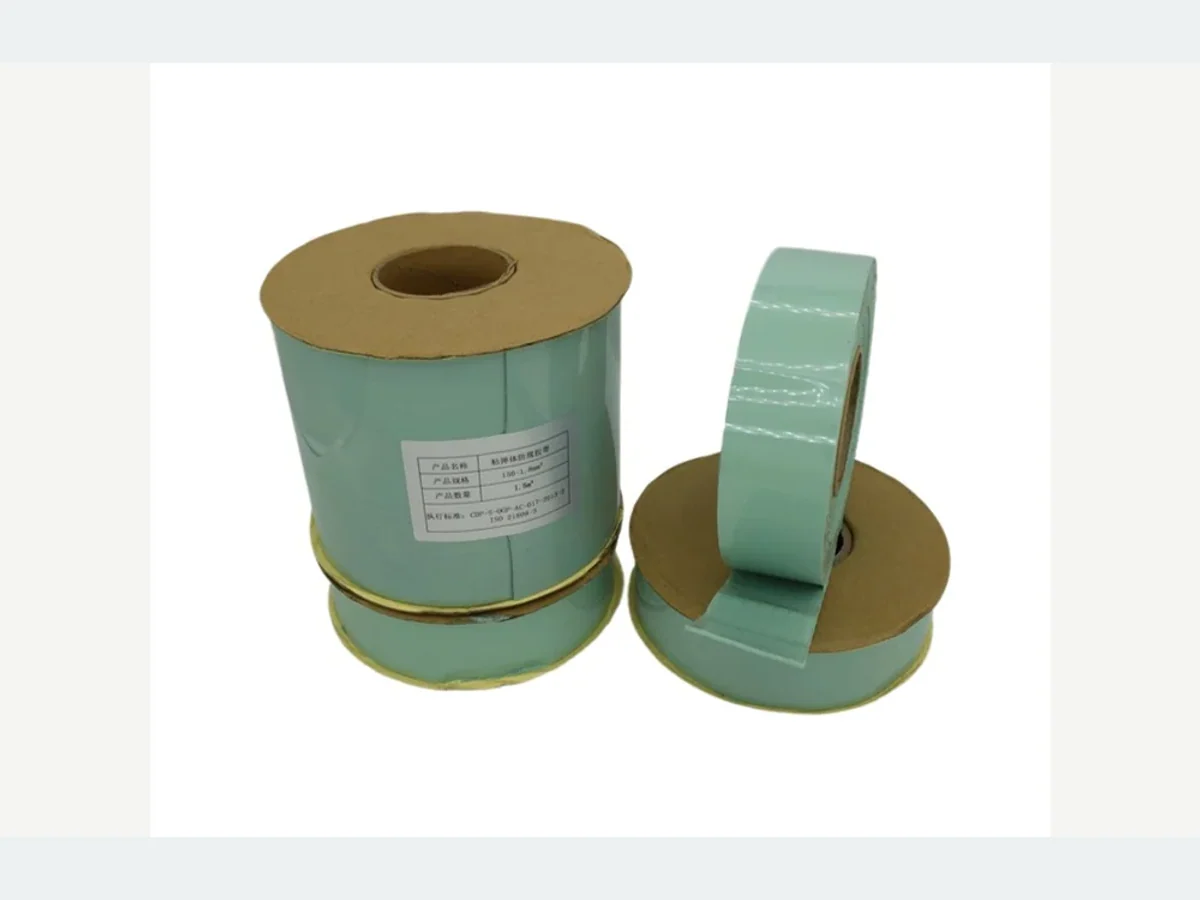

A permanently non-curing viscoelastic polymer that cold-flows into surface irregularities and re-seals itself. Selected where the asset geometry is complex, where an existing 3PE or FBE coating has failed locally, or where cathodic protection compatibility and zero VOC are required.

Viscoelastic TapeViscoelastic Paste

System 03 · 2 products

PE / PP Corrosion Protection and Wrapping System

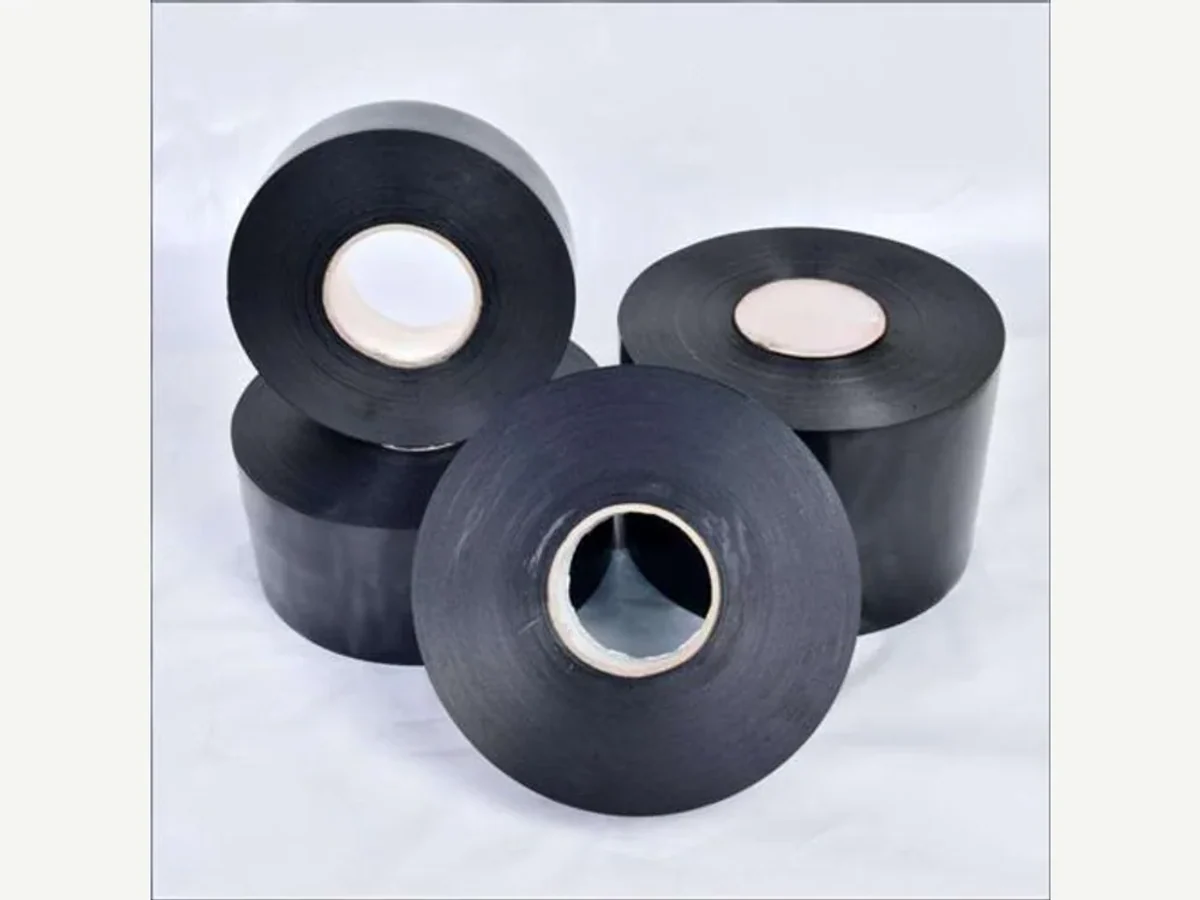

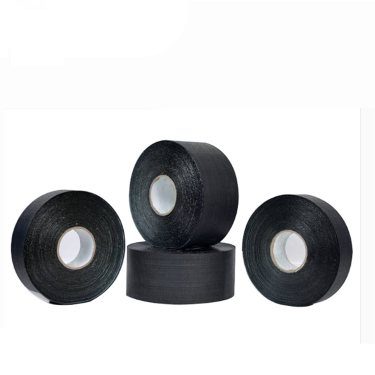

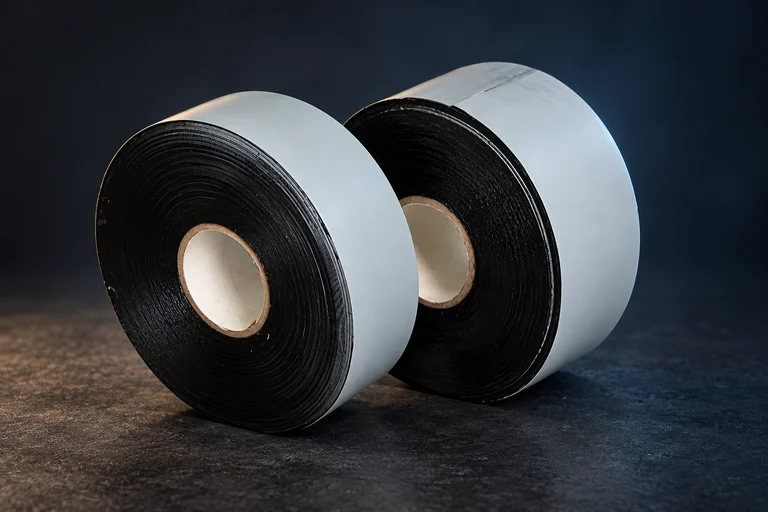

Bitumen-adhesive polyolefin tapes for buried steel pipelines and fittings. Both work in two roles — primary corrosion wrap and protective outer wrap. PE tape is the standard configuration; PP mesh-reinforced tape is selected where soil stress, backfill and handling damage govern.

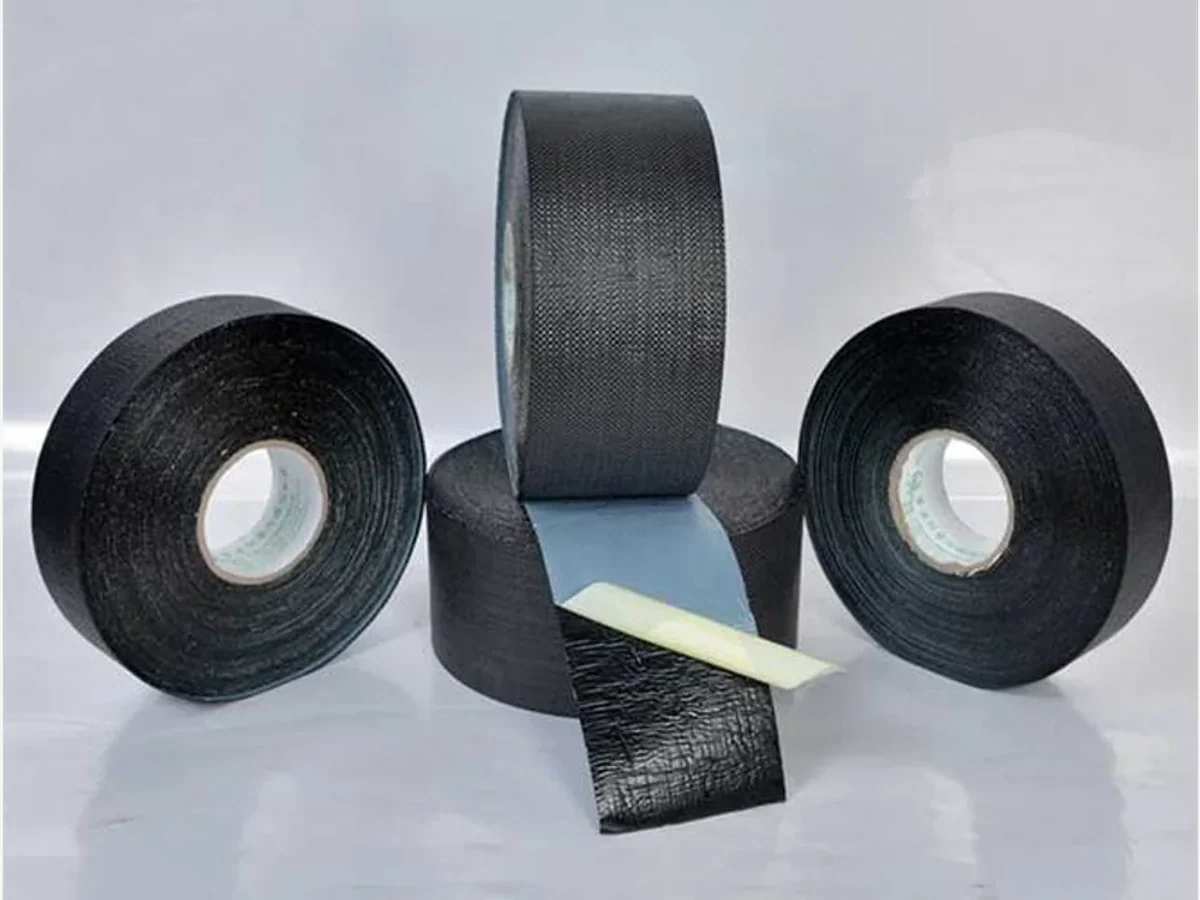

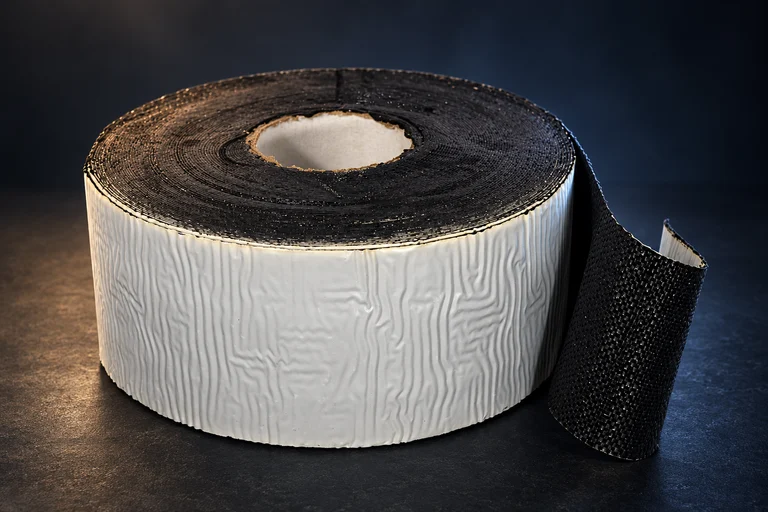

PE TapePP Fibre-Reinforced Tape

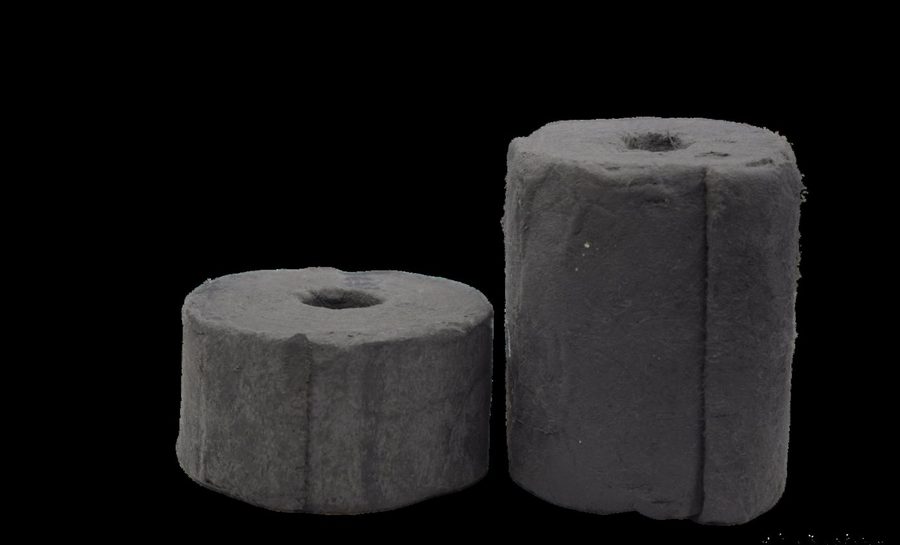

Microcrystalline wax anti-corrosion tape

System 04 · 2 products

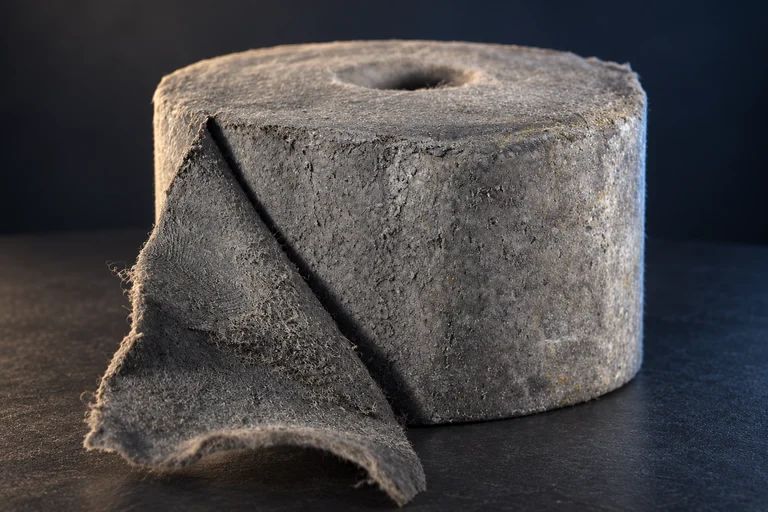

Microcrystalline Wax Protection System

A microcrystalline wax system for severe, humid, buried and immersed service. Tested against the ASTM / AWWA C217 method set used internationally for wax tape wrapping, with general and high-temperature grades.

Wax TapeWax Corrosion-Inhibiting Primer

System 05 · 1 dedicated product + PE / PP

Protective Outer Wrap Systems

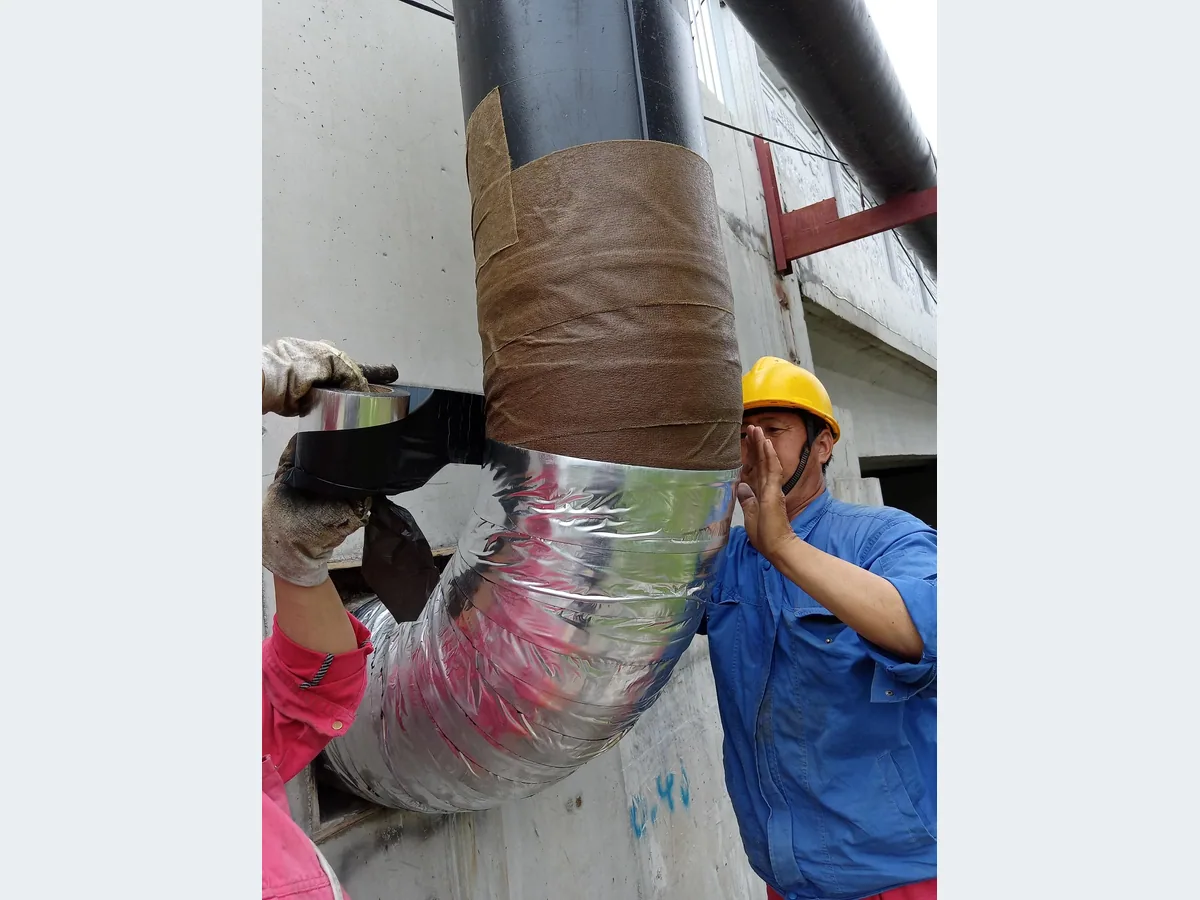

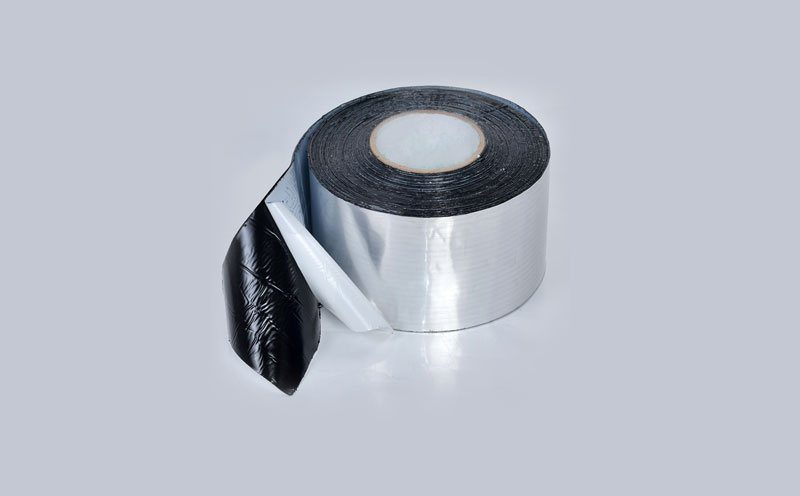

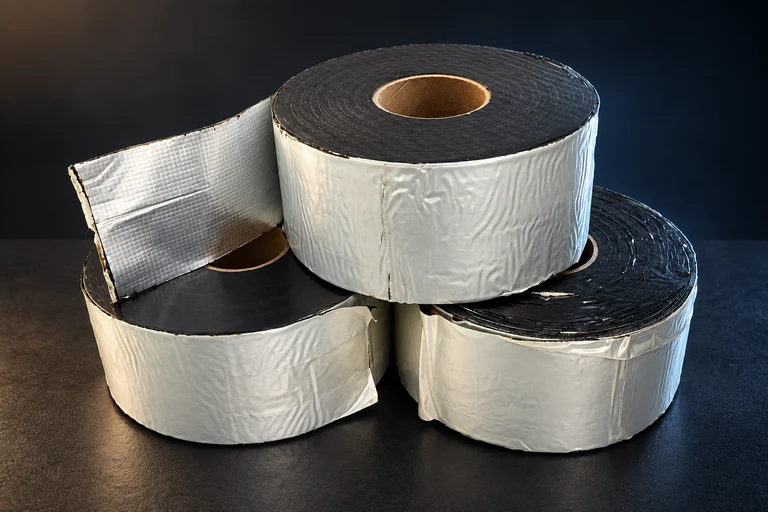

Outer wraps carry the ultraviolet, weather, soil-stress and handling loads over a completed primary system. Three materials are manufactured — aluminium foil, PE and PP fibre-reinforced — so the outer layer is specified for the actual exposure rather than fixed in advance.

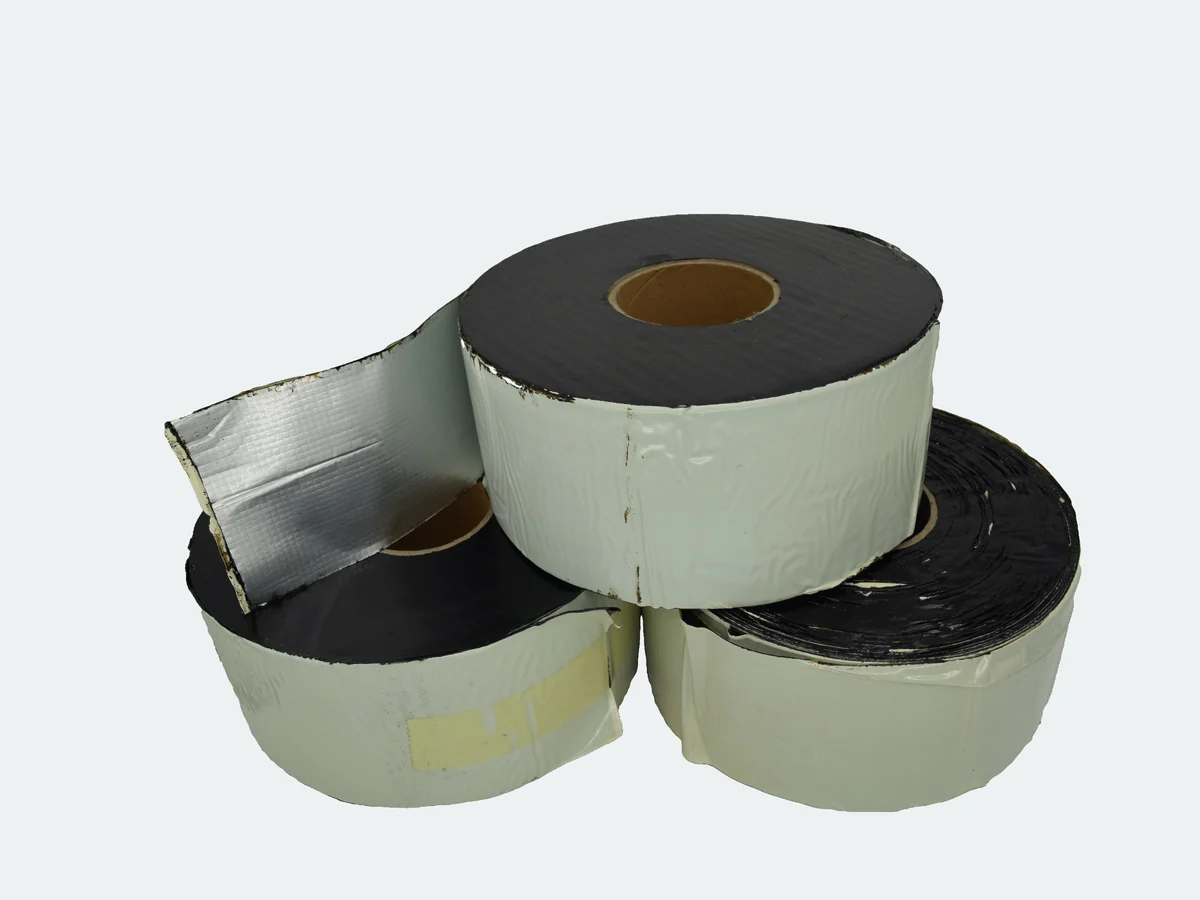

Aluminium Foil Outer WrapPE TapePP Fibre-Reinforced Tape

Full product range and selection guidance

How a system is built

Modular, not a fixed four-layer recipe

Components are selected and combined for the asset. Not every system uses every component: some viscoelastic configurations need no primer, filling compound is used only where the geometry is irregular, and the outer wrap is chosen for the exposure — or omitted where there is none.

Prepare

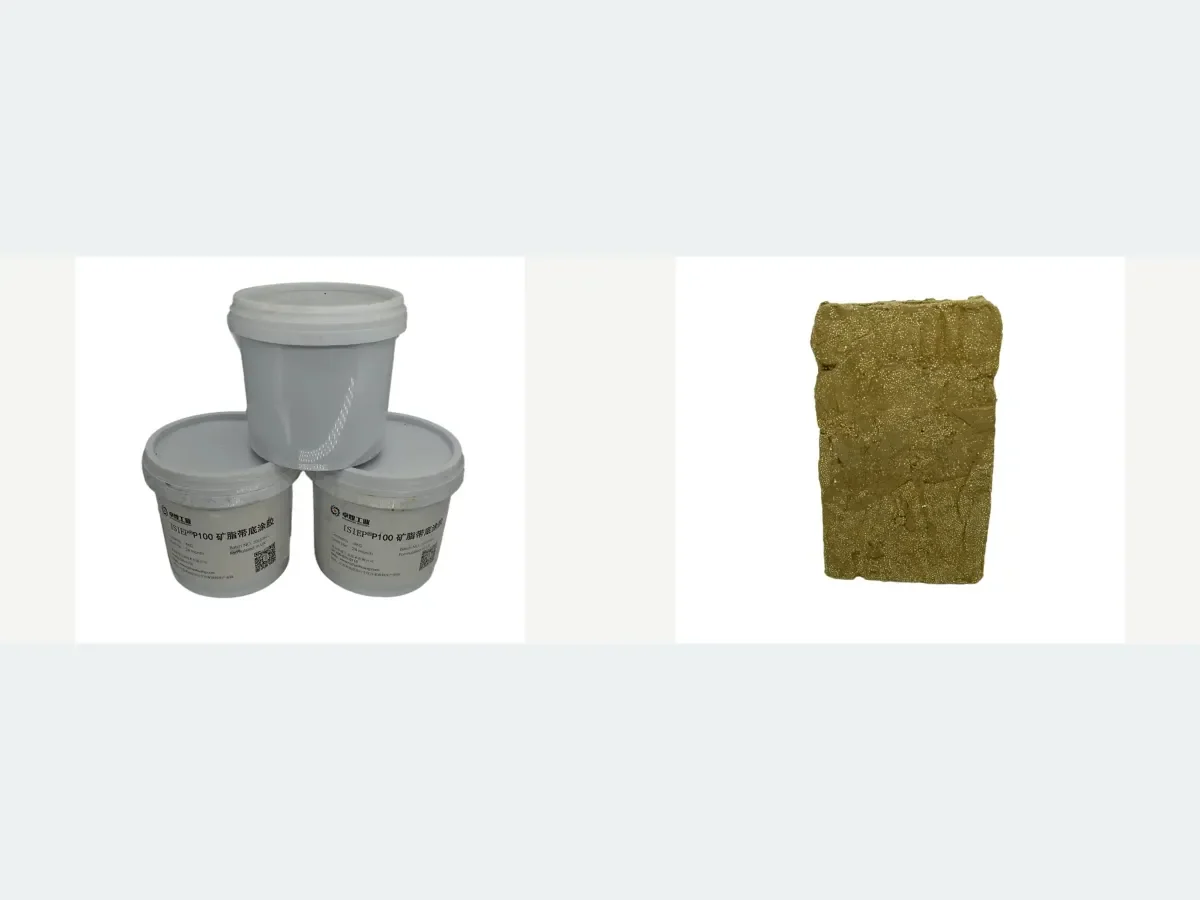

Primer

Wets the prepared steel, penetrates residual rust texture and inhibits corrosion at the interface.

Used in most systems. Some viscoelastic configurations require none.

Fill

Mastic / paste

Fills gaps, bolt recesses, weld caps and abrupt steps so the wrap makes continuous contact.

Used where the geometry is irregular; not required on plain pipe.

Seal

Corrosion protection tape

The continuous barrier: excludes water, water vapour, oxygen and corrosive media.

Always present. The material is chosen from the environment.

Protect

Protective outer wrap

Resists ultraviolet, weather, soil stress, handling and mechanical damage.

PE, PP fibre-reinforced or aluminium foil. Not required where there is no mechanical or UV exposure.

Where it goes

The assets these systems protect

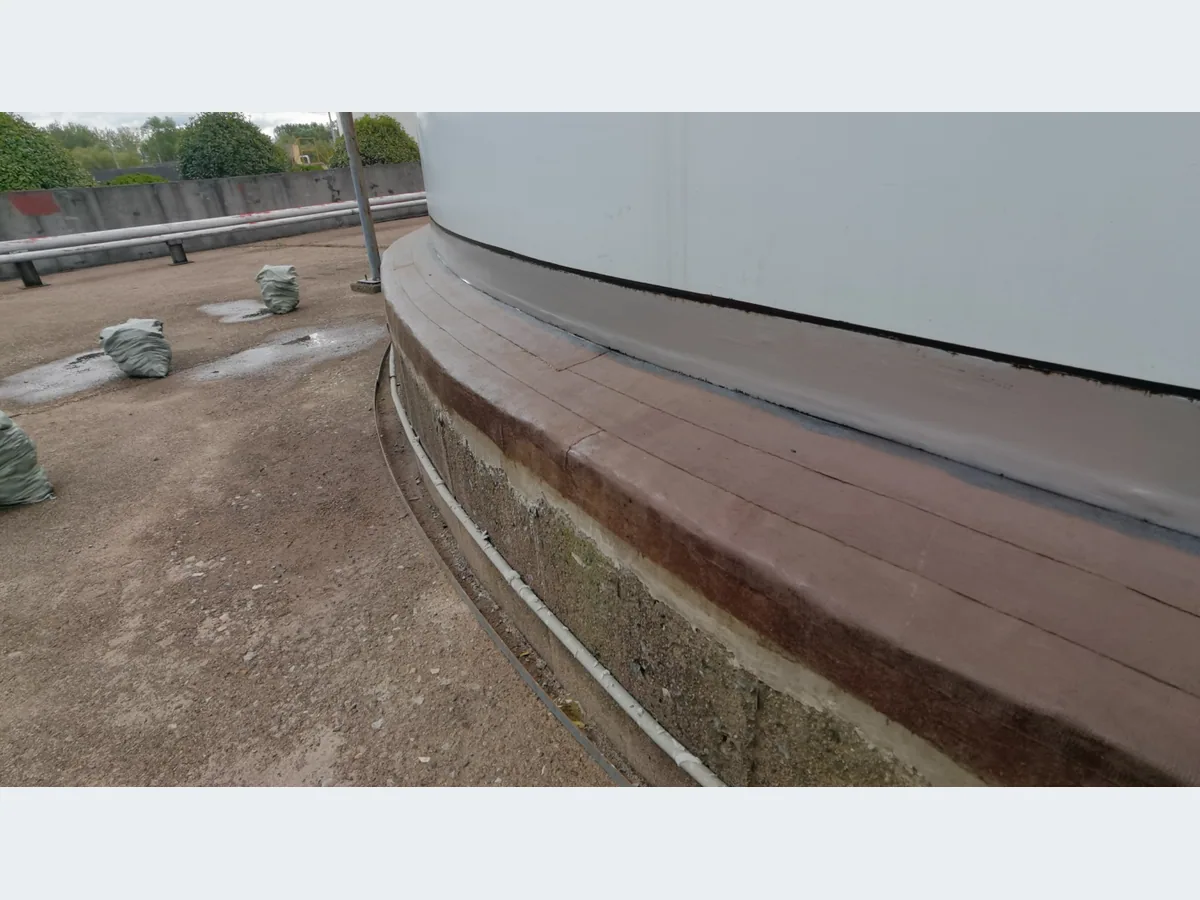

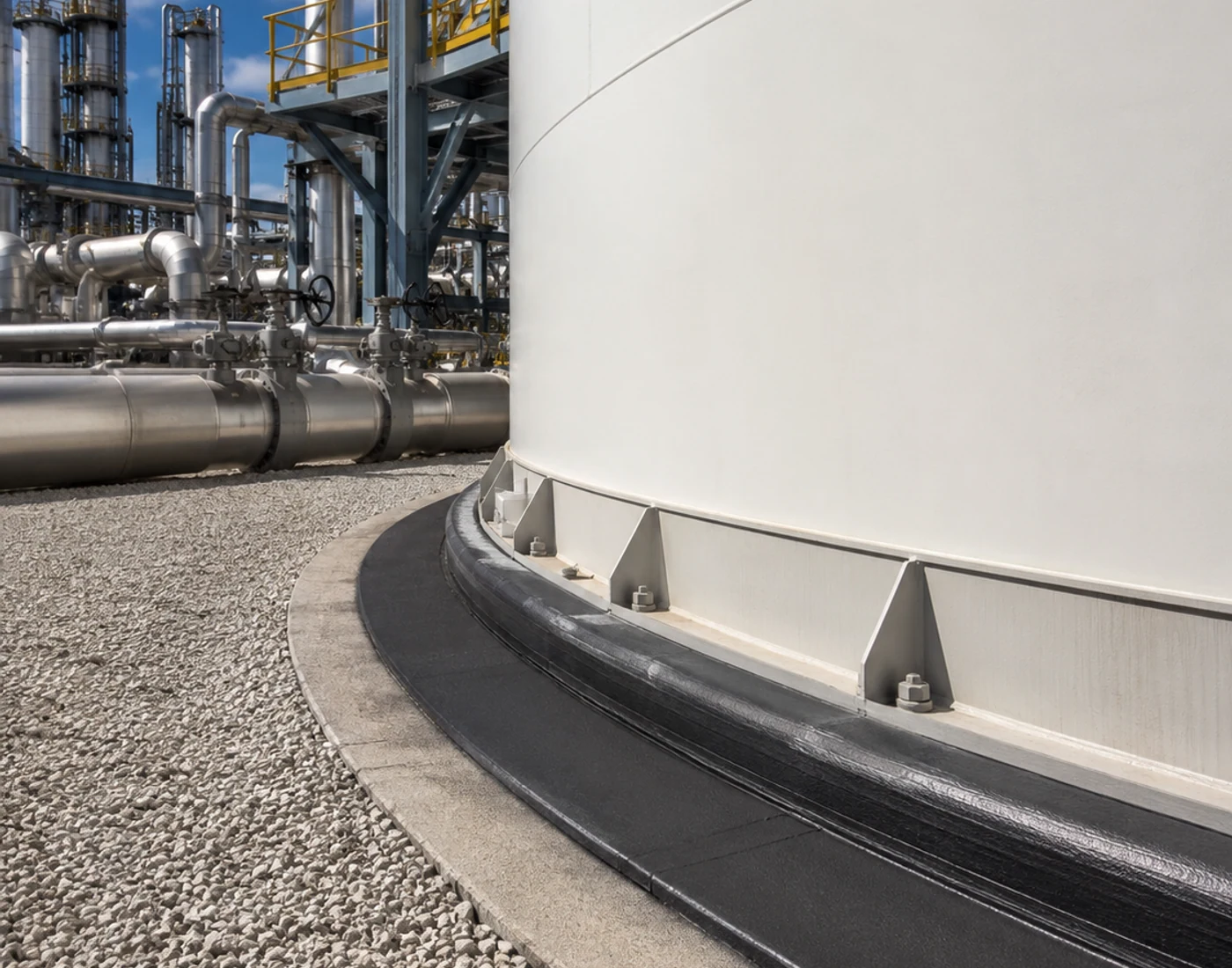

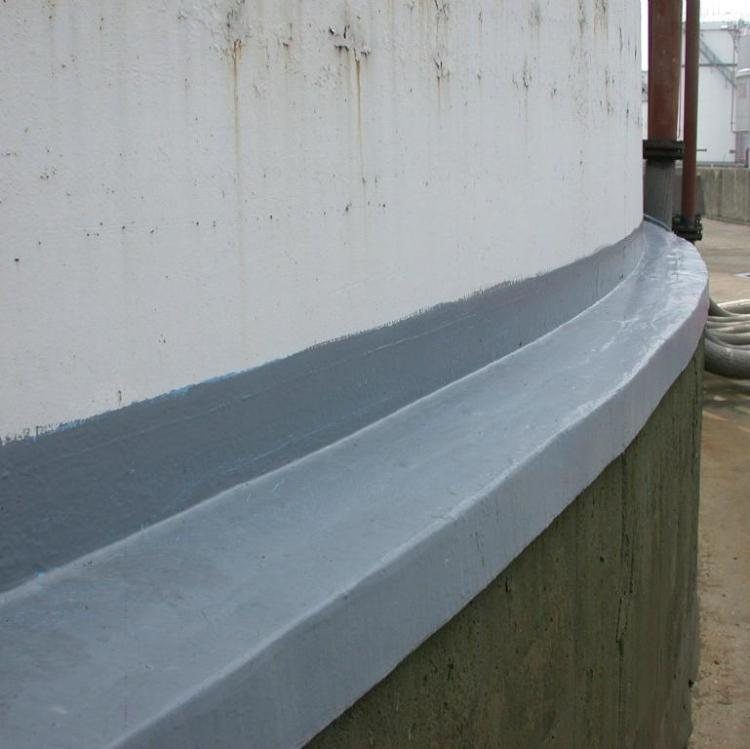

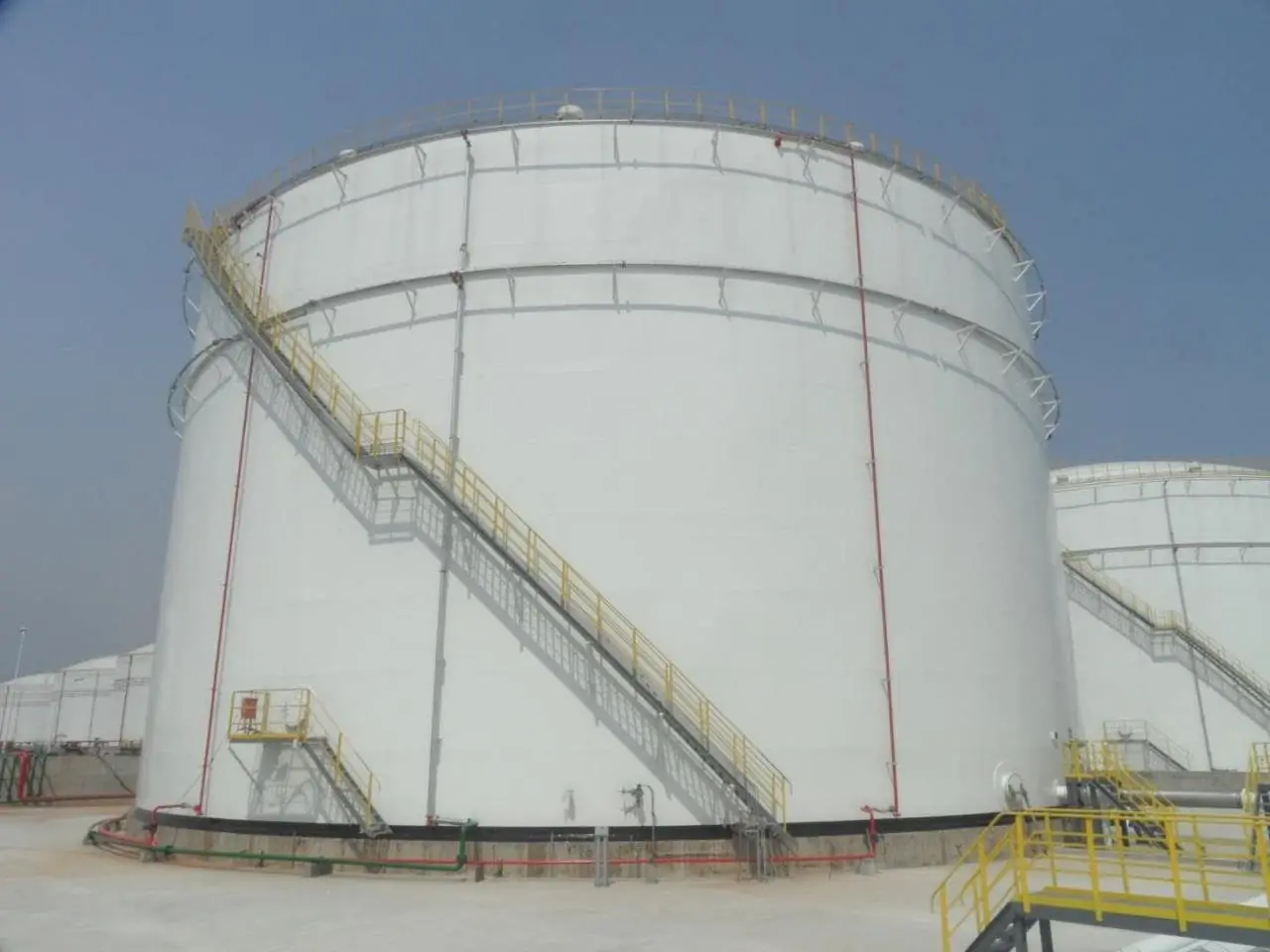

Storage tank base and chime edge after wrapping — Storage tank annular plate and chime edge

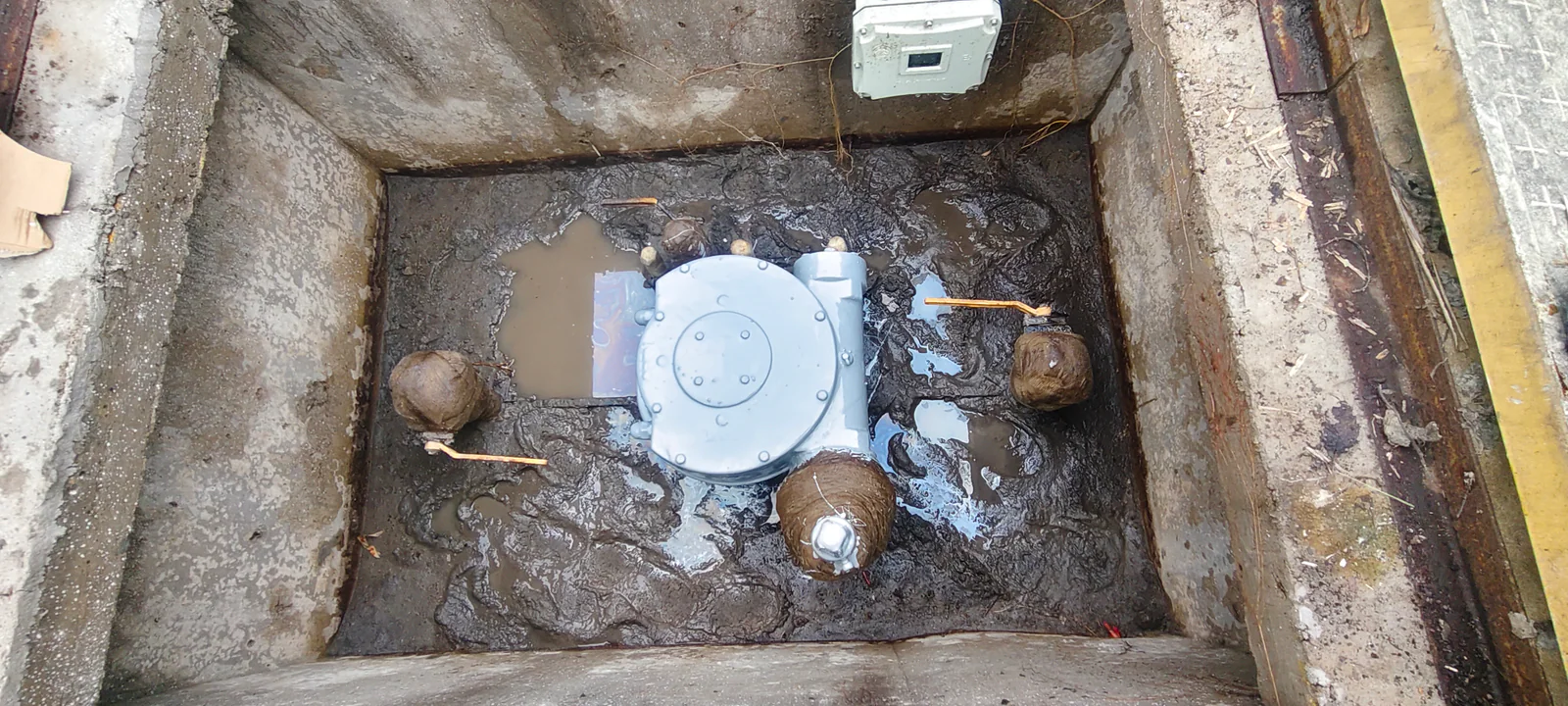

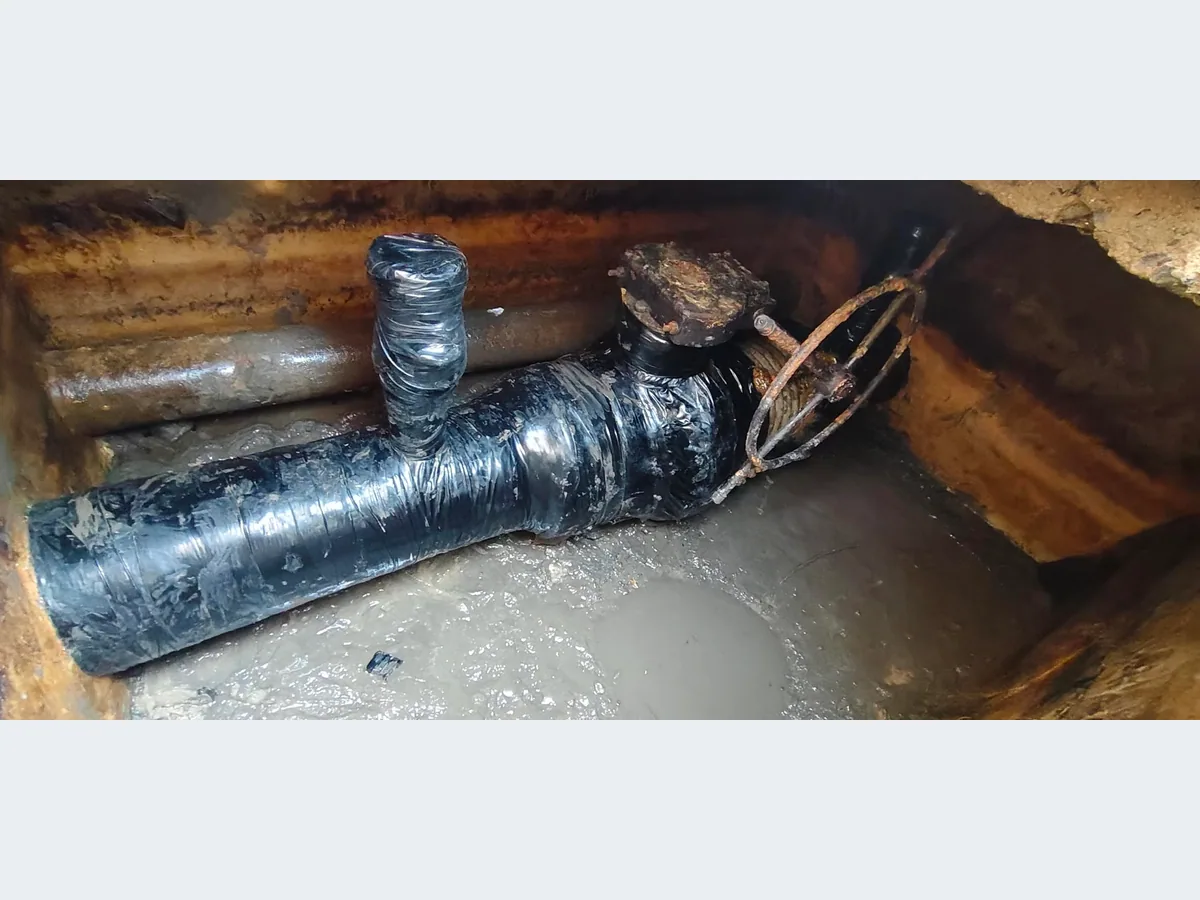

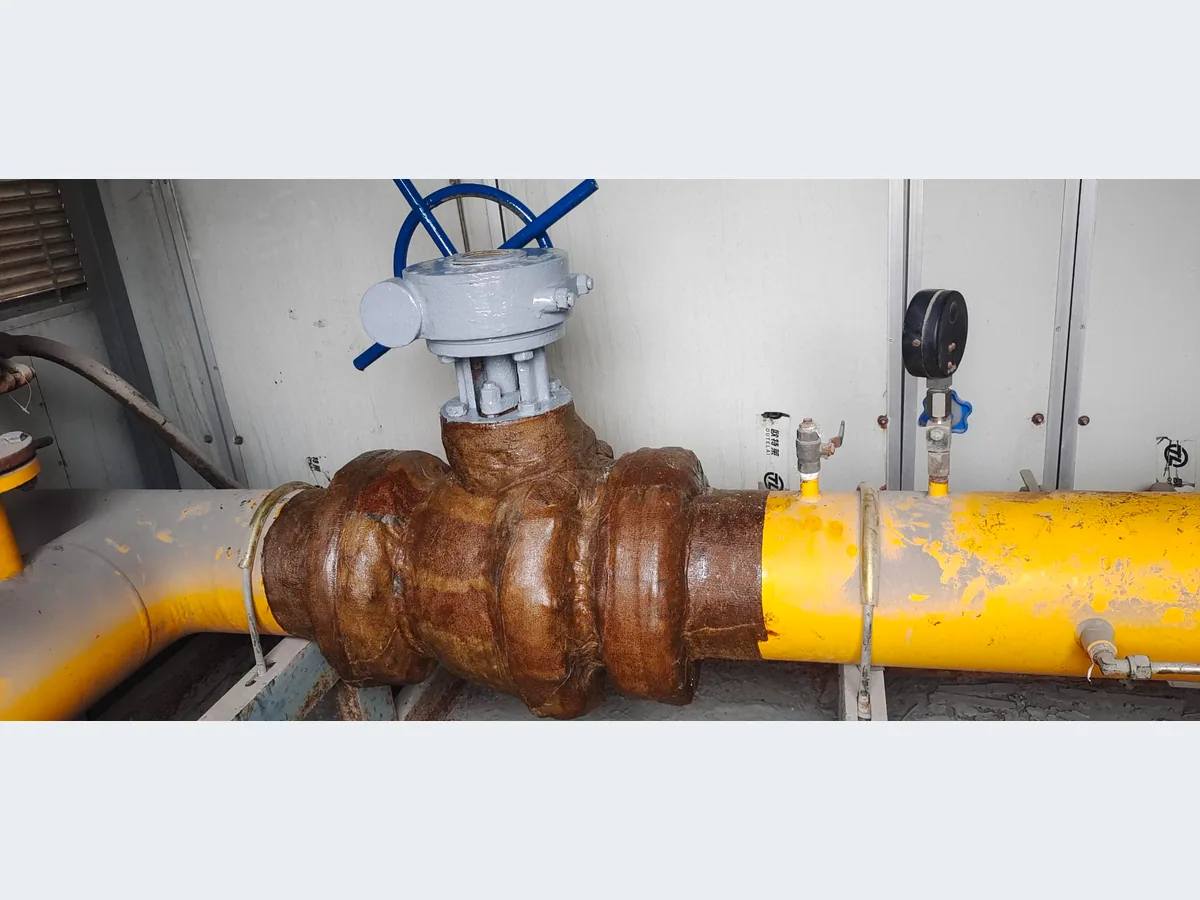

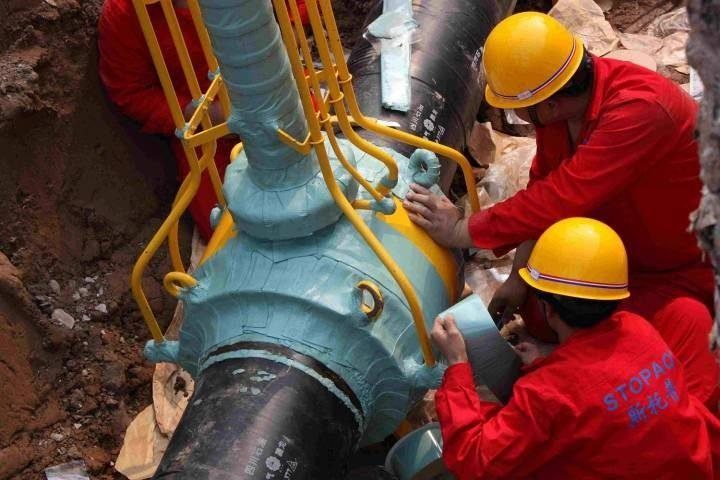

Buried valve being wrapped in a valve chamber — Buried valves, flanges and chambers

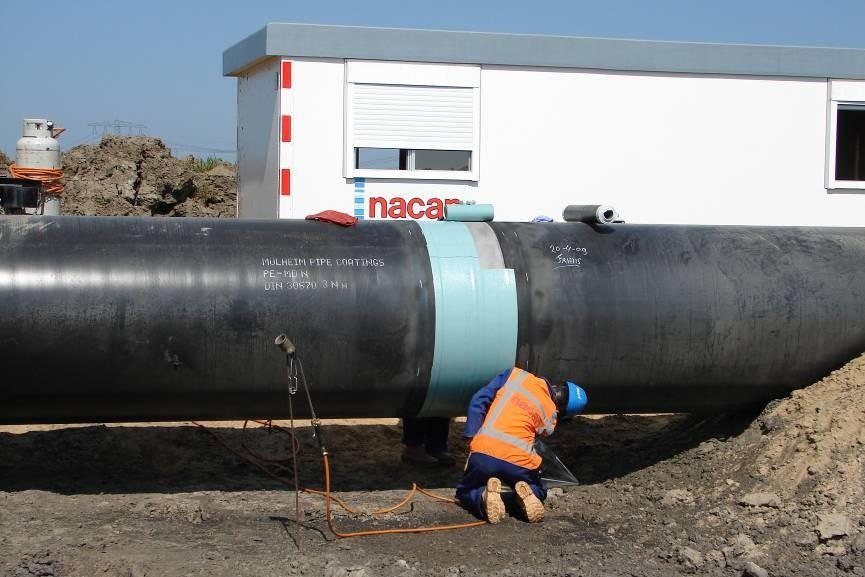

Buried pipeline field joint — Buried pipelines and field joints

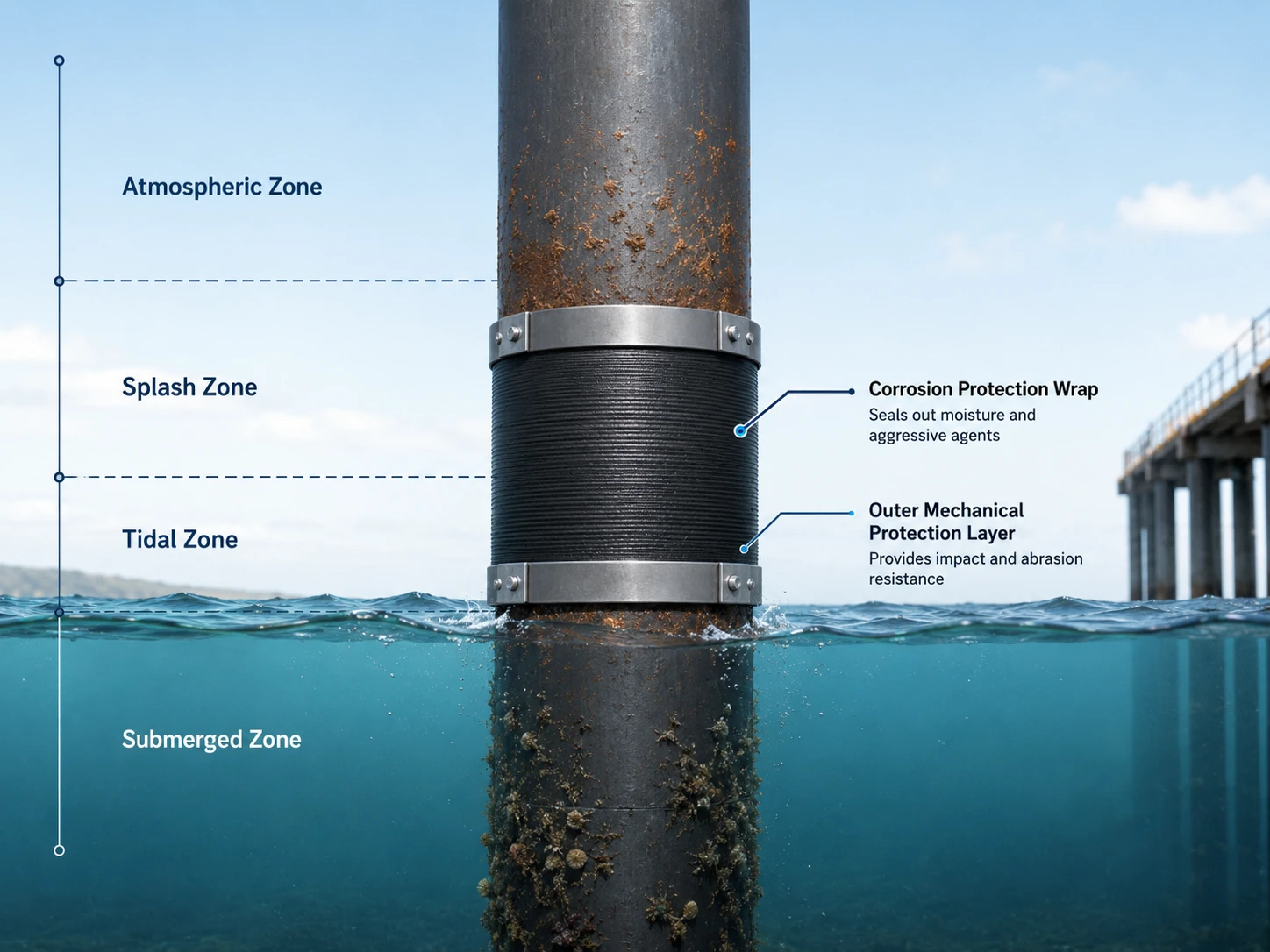

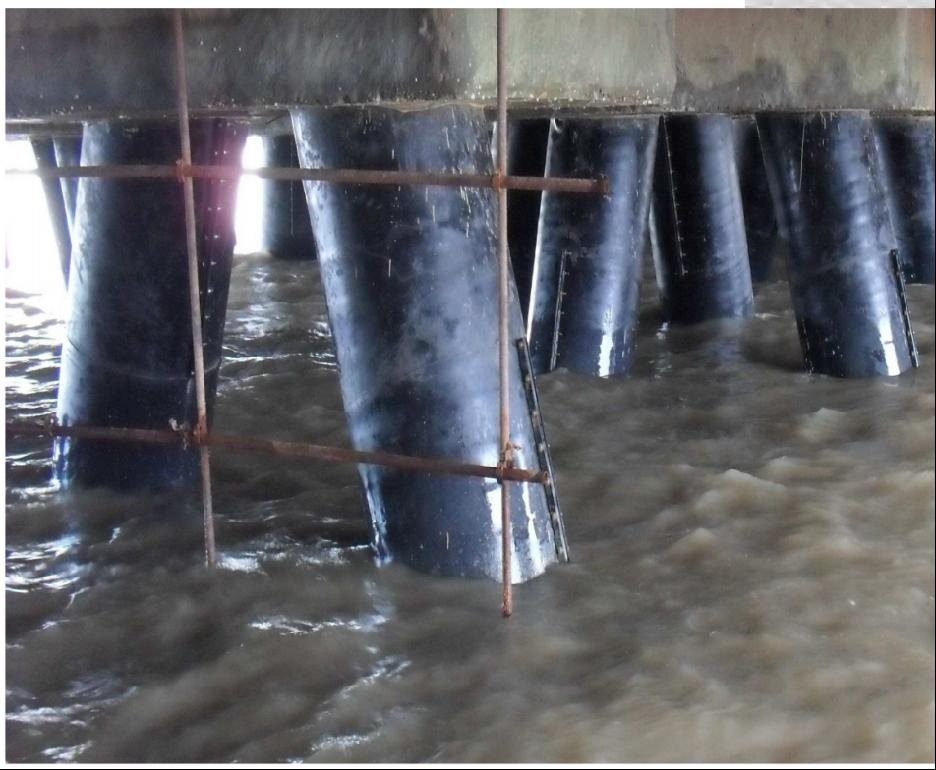

Steel pipe piles in water at a jetty — Jetty piles, splash zone and marine steel

Application solutions by asset type

Not just passed — cleared by a margin

18 out of 18 measured results came back above requirement

Anyone can print "complies" on a data sheet. Here is what the laboratories actually measured, next to what the standard demanded. Average margin across every quantified result: 1.7×. Not one of them scraped through.

5×

Peel strength to steel

Viscoelastic tape measured 9.9 N/cm at 23 °C against a 2 N/cm requirement, with 100 % adhesive coverage.

GB/T 2792-2014 · report SR180AC

2×

Breaking strength

Petrolatum tape measured 200 N/50 mm against a 100 N/50 mm requirement, at 30 % elongation against 10 %.

GB/T 3923.1 · report CTICAQ…164BR

1 000 h

Salt spray, no rust

Neutral salt spray held for 1 000 hours with no rust — the property that decides service life in coastal air.

GB/T 10125 · report CTICAQ…164BR

15 J

Impact, no holiday

Installed viscoelastic system took a 15 J impact with no holiday at 15 kV — measured on a wrapped pipe, not a lab coupon.

GB/T 23257-2017 Annex L · report SR180AC

Every figure above links to a report you can download right now, with the laboratory name, its CMA and CNAS accreditation numbers and the test method printed beside it. We would rather you checked than took our word for it — see the full method-by-method breakdown.

What can be evidenced

Every claim on this site is traceable to a document

Certificate numbers, laboratory names, report numbers and measured values are published in full — and every underlying document can be downloaded without asking us first.

ISO management systems

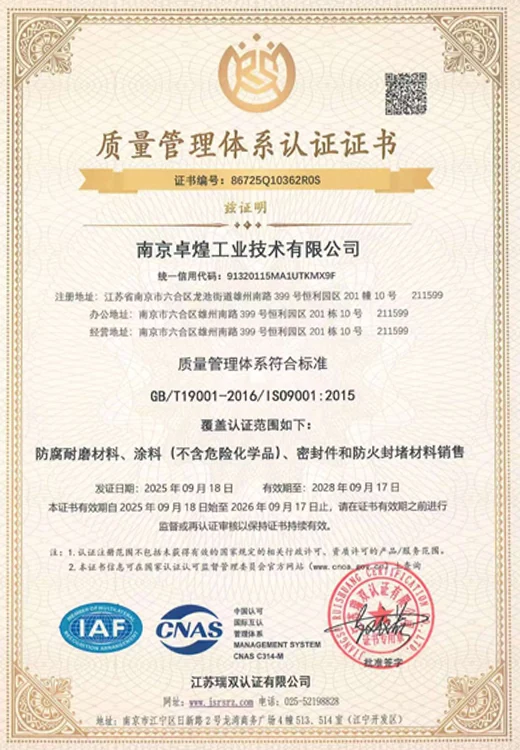

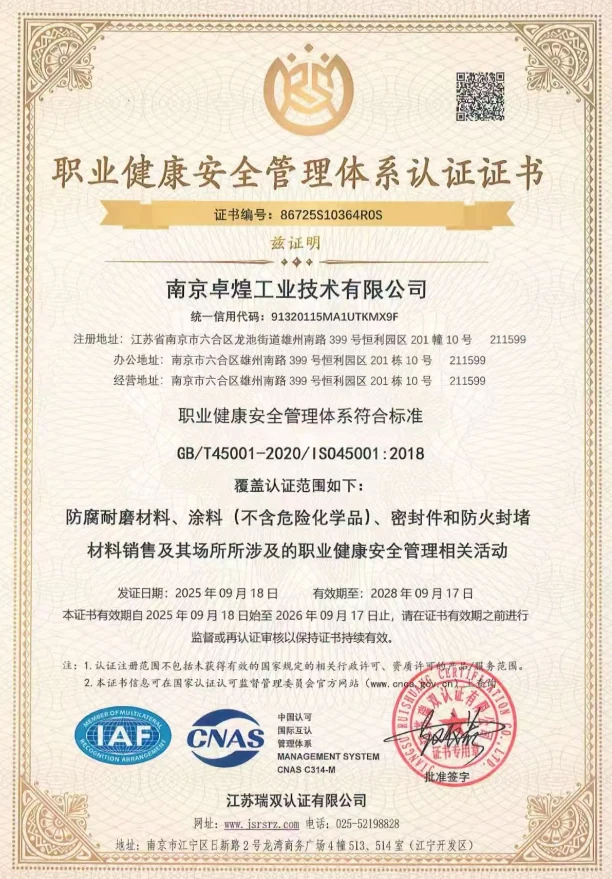

ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018, issued 18 September 2025 and valid until 17 September 2028 by an CNAS-accredited body. Certificate numbers and the certified scope are published exactly as printed.

Independent test reports

Four CMA / CNAS accredited laboratories, 2024–2026. A faithful English transcription of every report is published alongside the original report number, so any result can be checked against the Chinese original.

Cold-applied tank projects

Storage tank annular plate and chime protection from 5 000 m³ to 100 000 m³, 2017–2023, extracted from company project records with client, period and nominal capacity stated.

Third-party test reports on the wrapping range

Sample tested	Report number	Laboratory	Issued
Petrolatum (Ester) Oil-Based Anti-Corrosion Tape	`CTICAQ4512401550823164BR`	CTIC Testing Technology (Guangdong) Group	18 July 2024
Petrolatum Tape Primer	`CTG2410221378A_SR178AC`	Shenzhen Third-Party Testing Technology	11 October 2024
Petrolatum Sealing Mastic	`CTG2410221378A_SR179AC`	Shenzhen Third-Party Testing Technology	11 October 2024
Viscoelastic Anti-Corrosion Tape	`CTG2410221378A_SR180AC`	Shenzhen Third-Party Testing Technology	11 October 2024
Refined Wax Anti-Corrosion Tape	`J25C12220188BR`	Shenzhen Jinglian Testing	3 January 2025
PE Anti-Corrosion Tape (including matching primer)	`CTG2409251378A_SR177AC`	Shenzhen Third-Party Testing Technology	11 October 2024
PP Anti-Corrosion Tape and Primer	`CTG2410221378A_SR176AC`	Shenzhen Third-Party Testing Technology	11 October 2024
UV-Resistant Sealing Anti-Corrosion Tape (Aluminium Foil Outer Wrap)	`CBT30406071071`	Guangdong Baotong Quality Testing	30 March 2026

A test report records the properties measured on the sample submitted. It is a test result, not a system certification, and it does not qualify a complete installed system unless the report itself states that an installed system specimen was tested.

Quality, testing and certification in detail Download every document

Field experience

Applied on assets that stay in service

Storage tank annular plate and chime protection is the largest single application area. The petrolatum wrapping systems are also in use on buried valves in gas distribution chambers, on utility lines in metallurgical pipe racks and on bolted structural connections.

Oiltanking — storage tank annular edge, Qingdao
China Gas — buried valves and flanges in valve chambers, in use since 2018
Nanjing Iron & Steel Group — utility pipelines in pipe racks
Sinopec — tank-edge systems at Zhanjiang, Chongqing and Tongxiang

Project references

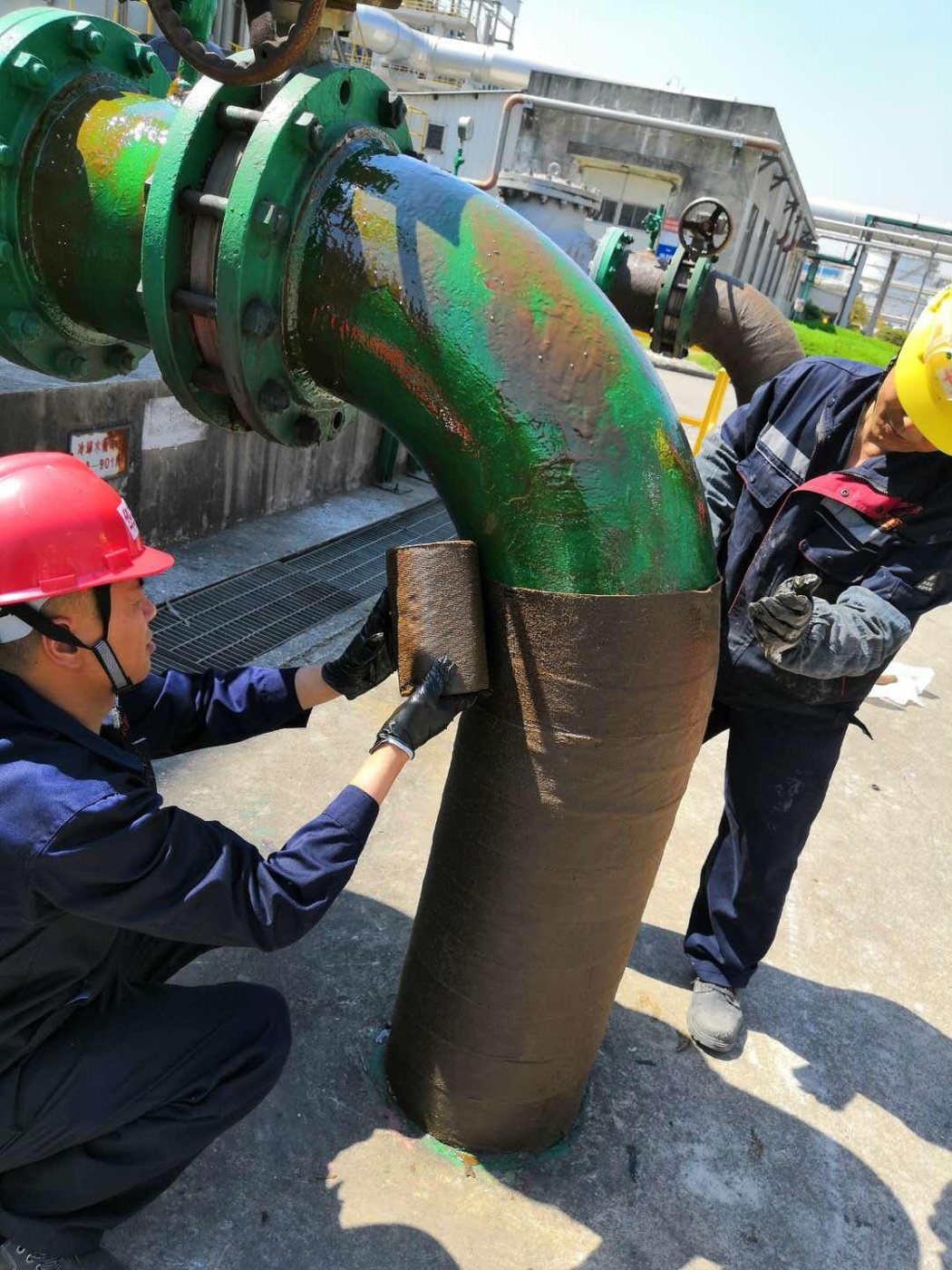

Two applicators wrapping a pipe bend with petrolatum tape on an operating plant

Petrolatum tape applied to a pipe bend on an operating plant. Photographs are selected from Zhuohuang project records and are retained as documentary references rather than marketing images.

Where you are

The system changes with the climate. The supplier does not.

A tank chime in the Gulf, a jetty pile in Indonesia, a mine pipe rack in Zambia and a buried water main in Alberta are not the same job — and we do not pretend one product covers them all.

Middle East

50 °C, UV and sabkha

Reflective foil outer wrap, higher service temperatures, 1 000 h salt spray with no rust.

Southeast Asia

No dry season to wait for

No cure window to protect, and a grade formulated to go onto wet or submerged steel.

Africa

No plant, no permit, no crew

Single-component materials applied by trained site labour on remote sites.

North America

ASTM and AWWA C217 methods

Wax tape tested to the method set your specs name; 84.5 N/cm peel at −45 °C.

Second sourcing

Already buying Denso, Trenton, STOPAQ or Polyken?

Those brands define four internationally recognised categories. We manufacture in all four — which is what makes a second source practical rather than partial.

We will not tell you we are equivalent; no comparative testing has been done and no equivalence is claimed. What we will do is publish every measured value we have, with the report number beside it, so you can lay it against the data sheet you already hold and judge on evidence.

Compare the categories

Documents, free, no form

Data sheets, test reports, safety data sheets and certificates — enough to assemble a vendor registration pack before you ever contact us. Including a published list of what we cannot evidence, so nothing surfaces in week three of qualification.

See what we do not hold →

Send us the asset, we will propose the system

Photographs, dimensions, operating temperature, exposure conditions, existing coating condition and estimated quantity are enough for us to propose a system configuration and issue the supporting documents.
