Microcrystalline Wax Tape and Primer

A microcrystalline wax system for severe, humid, buried and immersed service, tested against the ASTM and AWWA C217 method set used internationally for wax tape wrapping.

TDS 12 · Primary wrap

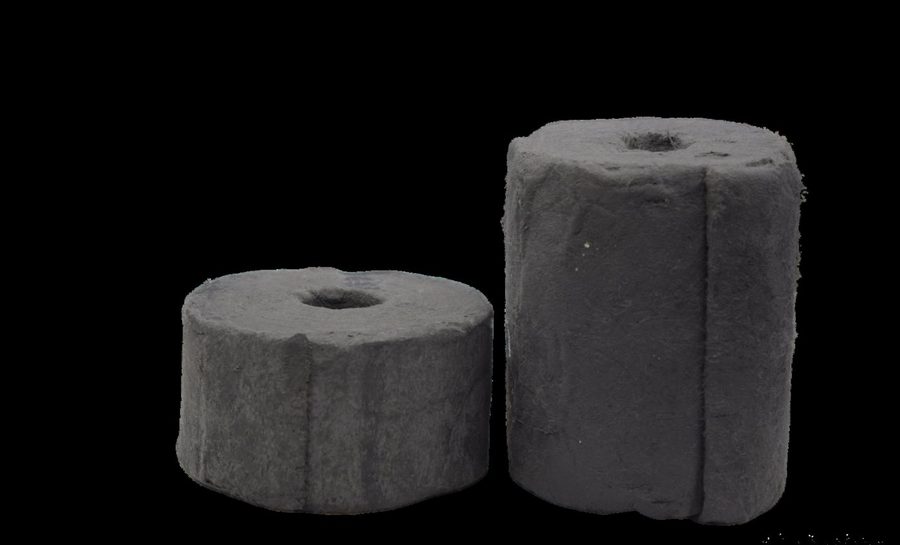

Microcrystalline Wax Anti-Corrosion Tape

A soft cold-applied wrapping material based on petroleum hydrocarbon compounds, a microcrystalline wax blend, a polyester non-woven carrier and flame-retardant additives.

Thickness2.0 mm
Widths50 / 100 / 150 / 200 / 300 mm
Roll length3 m

Storage tank annular plates · above-ground and buried pipelines · marine steel, piles and structural steel

Data sheet (PDF) → Test report → SDS →

TDS 13 · Primer

Wax Corrosion-Inhibiting Primer

A wax-system primer based on petroleum hydrocarbon compounds, a microcrystalline wax blend, titanium dioxide and rust inhibitors.

RoleBeneath wax tape

Beneath microcrystalline wax tape on all substrates · tank edge details · pipelines and fittings

Data sheet (PDF) → SDS →

Independently measured on the wax tape (report J25C12220188BR, Shenzhen Jinglian Testing, CMA 202219016678 · CNAS L18543 · ILAC-MRA, 3 January 2025), tested to the ASTM / AWWA method set: petroleum wax content 90 % against ≥ 80 % (AWWA C217); drip temperature 75 °C against ≥ 60 °C (ASTM D127); flash point 160 °C (ASTM D92); elongation at break 8 % (ASTM D1000); water absorption 3 % against < 5 % (ASTM D570). Dielectric strength complies with ≥ 170 V/mil (ASTM D149).

AWWA C217 method set

Exactly which methods the wax tape was tested against.

Above-ground pipework

Where the wax system is selected over petrolatum.

Aluminium foil outer wrap

The reflective layer against solar radiation.

Send us the asset, we will propose the system

Asset type, dimensions, operating temperature, exposure and estimated quantity are enough for us to return a system configuration, a material estimate and the supporting documents.

Start an enquiry Download data sheets
